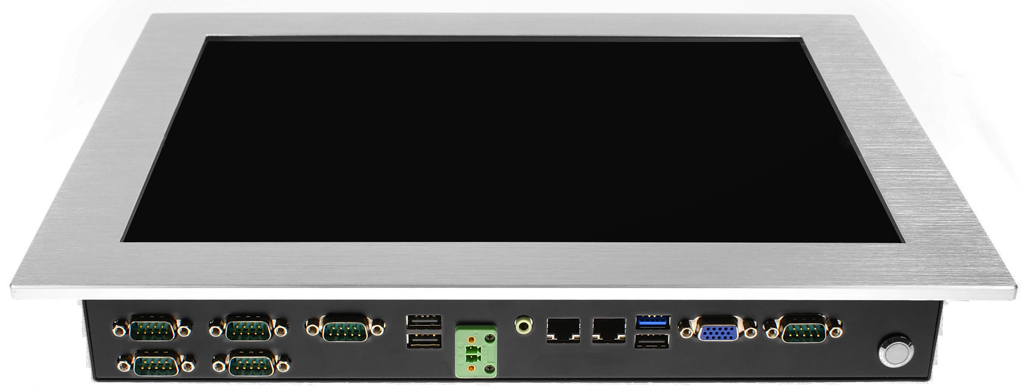

PanelPC Solution - 17 series - HPC-170BR-2930-4G
 |
- INTEL® BayTrail--M N2930 SOC Chip
- Onboard INTEL® BayTrail-M N2930 1.83GHz Quad Cores CPU
- Onboard SAMSUNG 4G/1333MHz DDR3L Memory
- Support DirectX 11 3D Graphics Acceleration
- Support 1*Serial ATAII(3Gb/s) Devices
- Support Dual INTEL® Gigabit LAN
- Support CRT Output
- Equipped with 802.11 b/g/n WIFI card & External Antenna
- Support 3* COM ports（COM2/COM3 Support RS422/485）
- Support 2.5” SATA HDD
- Support 1*M-SATA Socket
- Support 1*Mini PCI-E Socket
- Support 3* USB2.0 Ports
- Support 1* USB3.0 Port
- Support 3G SIM Card
- Support slick design
- VESA mount(100mm X100mm &75mm x 75mm)
|
 Quick Instructions guide
|
Panel
|
Panel Spec
|
AUO G170ETN01.0
|
|
Viewable Size Image
|
17.0 inch With LED Backlight
|
|
Active Area
|
337.920(H) x 270.336(V)
|
|
Resolution
|
1280 x 1024 @60Hz
|
|
Display Color
|
16.7M
|
|
Pixel Pitch
|
0.264 x 0.264 mm
|
|
Aspect Ratio
|
4:3
|
|
Contrast Ratio
|
1000:1
|
|
Max Brightness
|
350 cd/m²
|
|
Viewing Angle(H/V)
|
H170/V160
|
|
Response Time
|
3.5ms
|
|
Temperature Range
|
0 ～ +50℃(Operating)
|
|
Touch
|
Touch panel style
|
5 wires analog resistive
|
|
Active Range
|
337.00 x 269.50mm ±0.2mm
|
|
Temperature Range
|
-10 ~ +60℃(Operating)
|
|
Transparency
|
80 ±3%
|
|
Surface Hardness
|
≧ 3H (ASTM D3363, pressure 750g/45°)
|
|
Operating Force
|
≦ 80g
|
|
Knock test
|
10,000,000 times keystrokes
|
|
Case
|
Panel Material
|
Aluminum
|
|
Case Material
|
Iron
|
|
Color
|
Black
|
|
Coating Requirement
|
Spray Paint
|
|
Protection grade（IP）
|
IP65
|
|
Speaker
|
2-CH(3W)
|
|
Bracket
|
6 (Top:2pcs、Side:4pcs, Optional)
|
|
Installation Type
|
Open Frame / Wall Hanging（Optional）
|
|
Cooling Mode
|
Fan less Fully sealed design
|
|
System Specification
|
Form Factor
|
4”
|
|
Processor
|
INTEL® BayTrail-M N2930 1.83GHz/QC
|
|
System Chipset
|
INTEL® BayTrail-M N2930 (SOC)
|
|
System Memory
|
4G/1333MHz DDR3L SAMSUNG DRAM
|
|
BIOS
|
64MB SPI Flash ROM
|
|
Ethernet
|
2*INTEL® I211AT Gigabit LAN
|
|
Audio
|
Realtek® ALC887 HD Audio
|
|
Storage
|
1* Serial ATA2 3Gb/s connector
1* M-SATA connector
|
|
WIFI Module
|
N/A(Option)
|
|
Optical Device
|
N/A
|
|
Expansion
|
PCI-E mini card for WLAN
|
|
Display Output
|
CRT
|
|
I.O Port
|
1*USB3.0、3*USB2.0、1*RS232、
2*RS232/422/485、1*Line-out
|
|
Power Adapter
|
DC-IN (9~24V,Euro terminal block)
|
|
OS Support
|
Windows 7/8/8.1
|
|
Temperature
|
Operating：0 ~ +50℃
|
|
Humidity
|
20%~90% (non condensing)
|
|
Shock
|
Operating：15G，11ms duration
|
|
Vibration
|
Operating：5~500Hz/1 Grms
|
|
Net Weight (kg)
|
|
|
Dimension
|
407.0mm*340.0mm*60.0mm
|
|
Certification
|
FCC CE IP65
|
|
Other
|
Support Non lead I.O interface output
|
|
Other Information
|
Application
|
Commercial、Banking、Digital Signage
POS/KIOSK、Industrial Automation
|
|
Special Features
|
Metal design, compact、slick
|
|
Other
|
Optional wall hanging telescopic bracket, etc., can also be used as the embedded security
|
|
Accessory
|
Adapter
|
1* 60W AC-DC Adapter
|
|
Power cord
|
1*Power cord
|
|
Manual
|
2*Manual
|
|
CD
|
1*CD
|
|
Other
|
2* WI-FI antenna
|
|
Category |
OS |
Ver |
Size |
Description |
Update |
Download |
| Type |
OS |
Size |
Description |
Update |
Download |
| Type |
Version |
Size |
Description |
Update |
Download |
| TW |
V.01 |
4.2MB |
English Manual |
2015/9/23 |
 |
| Accessory |
| Adapter |
1* 60W AC-DC Adapter |
| Power cord |
1*Power cord |
| Manual |
2*Manual |
| CD |
1*CD |
| Other |
2* WI-FI antenna |
Ordering Information:
HPC-170BR-2930-4G
|
|
|
|
