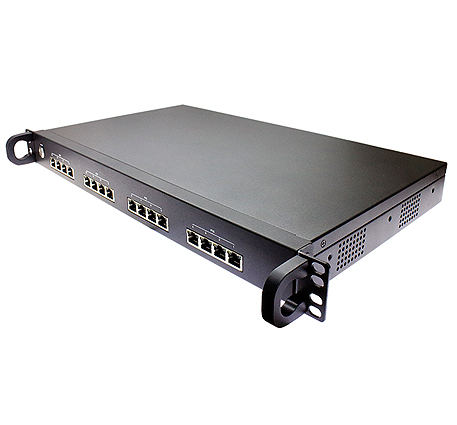

1U Rackmount Solutions - JBC152F53308-1900-B
Specification
| Model Name |
JBC152F53308-1900-B (8-Port) |
JBC152F53316-1900-B (16-Port) |
| Part Number |
HBJC152F53308-19B |
HBJC152F53316-19B |
| Motherboard Specification |
| CPU |
Intel® Celeron J1900, 2.0GHz Quad-Core SoC, 10W, Bay Trail |
| Memory |
Onboard 4GB DDR3L-1333 (non-expandable) |
| Graphics |
Intel HD Graphics |
| LAN |
4 x Intel I211-AT Gigabit LAN |
| PoE |
8 x 10/100 LAN with PoE, up to 30W per port |
16 x 10/100 LAN with PoE, up to 30W per port |
Conforms to IEEE802.3, IEEE 802.3u, IEEE802.3af, IEEE802.3at, IEEE802.3x Flow control
For Switch : IP178G
For PoE : MAX5980 |
| Audio |
NA |
| Storage |
1 x 2.5" SATA2 3Gb/s Connector
1 x Shared mSATA/mini-PCI Express Combo slot (Full-size) |
| Wireless / Mini-PCIE Slot |
1 x open Mini-PCIE Slot (Full Size) |
Occupied |
| USB |
Embedded 1 * USB 3.0 and 3 * USB 2.0 |
| Chassis Specification |
| Product size |
430 (W) * 252 (D) * 44 (H) mm |
| Color |
Black |
| Storage Bay |
1 * 2.5" HDD or SSD Drive Bay |
| Front I/O Port |
8 x 10/100 LAN with PoE, up to 30W per port |
16 x 10/100 LAN with PoE, up to 30W per port |
| 1 x Power Button with LED |
| Rear I/O Port |
1 x AC ON/OFF Switch
1 x AC-in Plug
1 x VGA port
2 x Serial ports (1 x RS232/422/485, 1 x RS232)
4 x RJ45 LAN (10/100/1000)
1 x USB 3.0 port
1 x USB 2.0 port |
| Power Source |
400W AC-DC Power
AC 90~240V Input
DC12V & 52V Output |
| Cooling Fans |
4020 FAN x 4 / 7000 rpm / DC-12V-0.1A / 8 CFM |
| Environment |
Operating Temperature : 0 ~ 60°C
Storage Temperature : -10 ~ 70°C
|
| Standard Accessory |
√ Power Cord x1
√ CD Disk x1
√ Manual x1
√ Screw Pack x1
|
| Functional |
PoE Application for Network Video Recorder (NVR) and Digital Security |
| Certificate |
CE,FCC,ErP For Rackmount Barebone |
|
Ordering Info
| Part Number |
Description |
| HBJC152F53308-19B |
Rackmount Barebone with 8 PoE |
| HBJC152F53316-19B |
Rackmount Barebone with 16 PoE |
| NF533D4P-1900 (Incl) |
Motherboard |
| JW1005-4P (Incl) |
PoE card |
| G02-DVD20-A1-WF (Incl) |
DVD driver disk |
| G01-SA715L7P410F (Incl) |
SATA data & power cable |
| ADMPEIDLA (Incl) |
Mini PCIE card for extra LANs |
|
- The specification and accessories of the products are subject to irregular update. Please refer to the actual articles and accessories or consult the local distributors. Jetway reserves the right to change.
- The name and trademark mentioned in product specification belong to their respective owners.
|
|
|
|
