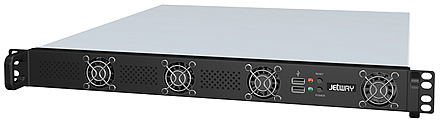

1U Rackmount Solutions - JBC161F94M-Q87-S
Specification
| Model No. |
JBC161F94M-Q87-S |
| Part No. |
HBJC161F94M-Q87-S |
| Motherboard Specification |
| CPU |
4th Generation Intel® Core i7 / i5 / i3 / Pentium Processor
Socket LGA 1150 (Formerly Haswell) |
| Chipset |
Intel Q87 Chipset |
| Memory |
4 x 240-pin DIMM un-buffered Dual Channel DDR3-1600 up to 32GB |
| Graphics |
Requires Intel Core processor with Intel HD Graphics |
| LAN |
1 x Intel i217LM PHY Gigabit LAN (iAMT 9.0)
1 x Intel i211AT PCI-E Gigabit LAN |
| Audio |
HDMI |
| Storage |
6 x SATA3 6Gb/s Ports with RAID 0, 1, 5, 10 , JBOD
1 x mSATA Full-size Slot (shares with SATA#6 port) |
| Wireless / Mini-PCIE Slot |
1 * Mini-PCI Express Slot (Full-size) |
| Expansion Slot |
1 x PCI-E 3.0 x16 Slot (by 16-lane)
1 x PCI-E x4 Slot
1 x PCI-E x1 Slot |
| USB |
Embedded 4 * USB 3.0 & 8 * USB 2.0 |
| MB Form Factor |
Micro ATX (245mm * 245mm) |
| Chassis Specification |
| Form Factor |
1U Rackmount |
| Dimensions |
430 (W) * 467 (D) * 44 (H) mm |
| Storage Bay |
4 * 3.5" HDD + 1 * 2.5" HDD OR
5 * 2.5" HDD |
| Front I/O Port |
1 * Power Button
1 * Reset Button
1 * Power LED
1 * HDD LED
2 * USB 2.0 ports |
| Rear I/O Port |
1 * AC Input
1 * PS2 Keyboard
1 * PS2 Mouse
2 * USB 3.0 ports
1 * HDMI (up to 1920 x 1080)
4 * USB 2.0 ports
1 * VGA (up to 2048 x 1536)
1 * RS232 COM port
2 * RJ-45 ports |
| 1U Power Supply |
1U-300W / Support PFC / 190 (L) *100 (W) *40.5 (H) mm (FLEX)
AC Input 100-240V, 50-60Hz, 6.3A MAX
+5V 16A MAX
+12V 18A MAX
-12V 0.5A MAX
+3.3V 14A MAX
+5Vsb 2.5A MAX |
| Cooling Fans |
4020 FAN * 4 / 7000 rpm / DC-12V-0.1A / 8 CFM
4038 FAN * 2 / 12000 rpm / DC-12V-0.3A / 42 CFM |
| Expansion Slots |
1 * Mini-PCI Express Slot (Full-size) |
| Environment |
Operating Temperature : 0 ~ 60°C
Storage Temperature : -20 ~ 70°C
|
| Standard Accessory |
√ 1U CPU Fan x1
√ Power Cord x1
√ DVD Disk x1
√ Quick Installation Guide x1
√ Manual x1
√ Screw Pack x1
|
| Certificate |
CE,FCC,ErP for Rackmount Barebone
CE,FCC,UL,CCC,RoHS,CISPR 22 CLASS B,UL60950-1,TUV EN 60950-1,CB for Power Supply |
|
Ordering Info
| Part Number |
Description |
| HBJC161F94M-Q87-S |
1U Rackmount Barebone |
| NMF94RM-Q87 (Incl) |
Micro ATX Motherboard |
| F07-FNJNF94M-F (Incl) |
1U CPU cooling fan |
| G02-DVD15-A16-WF (Incl) |
DVD driver disk |
| HBSPCUS-F (Incl) |
Power Cord |
| LCSCHBJC3XX-F (Incl) |
Screw pack |
| G01-COM9X3-30A-F (Not Incl) |
COM bracket 30cm |
|
CPU Support
| 4th Generation Intel® Core i7 / i5 / i3 / Pentium Processor |
| i7-4785T |
| i7-4790 |
| i7-4790S |
| i7-4790T |
| i7-4771 |
| i7-4770K |
| i7-4770 |
| i7-4770S |
| i7-4770T |
| i7-4765T |
| i5-4460 |
| i5-4460S |
| i5-4590 |
| i5-4590S |
| i5-4590T |
| i5-4690 |
| i5-4690S |
| i5-4690T |
| i5-4670K |
| i5-4670 |
| i5-4670S |
| i5-4670T |
| i5-4570 |
| i5-4570S |
| i5-4570T |
| i5-4440 |
| i5-4440S |
| i5-4430 |
| i5-4430S |
| i3-4350 |
| i3-4350T |
| i3-4360 |
| i3-4150 |
| i3-4150T |
| i3-4340 |
| i3-4330 |
| i3-4330T |
| i3-4130 |
| i3-4130T |
| Pentium G3240 |
| Pentium G3240T |
| Pentium G3440 |
| Pentium G3440T |
| Pentium G3450 |
| Pentium G3430 |
| Pentium G3420 |
| Pentium G3420T |
| Pentium G3220 |
| Pentium G3220T |
| Pentium G3320TE |
| Celeron G1840 |
| Celeron G1840T |
| Celeron G1850 |
| Celeron G1820 |
| Celeron G1820T |
| Celeron G1830 |
|
Ordering Info
| Part Number |
Description |
| HBJC152F53308-19B |
Rackmount Barebone with 8 PoE |
| HBJC152F53316-19B |
Rackmount Barebone with 16 PoE |
| NF533D4P-1900 (Incl) |
Motherboard |
| JW1005-4P (Incl) |
PoE card |
| G02-DVD20-A1-WF (Incl) |
DVD driver disk |
| G01-SA715L7P410F (Incl) |
SATA data & power cable |
| ADMPEIDLA (Incl) |
Mini PCIE card for extra LANs |
|
- The specification and accessories of the products are subject to irregular update. Please refer to the actual articles and accessories or consult the local distributors. Jetway reserves the right to change.
- The name and trademark mentioned in product specification belong to their respective owners.
|
|
|
|
| © Copyright IBT Technologies Inc., 2014 - All Rights Reserved |
* Information are subject to change without notice, Engineering specs may differ slightly.
* Parts number may differ from ordering information. |
|
