Model No

JBC370F33-270-B / JBC370F33W-270-B

Motherboard Specification

CPU

INTEL ® Atom N270 CPU(45nm,512K Cache, 1.60 GHz, 533 MHz FSB)

Chipset

INTEL® 945GSE + ICH7M chipset

Memory

1 * SO-DIMM Sockets for un-buffered Single Channel DDR2 533/400 SDRAM Up to 2 GB

Expansion Slots

1 * Mini PCI-E

LAN

1 * Realtek RTL8111DL PCI-E Gigabit Ethernet LAN

Audio

Realtek ALC662 HD Audio CODEC with 4-Channel

Storage

1 * Serial ATA2 3Gb/s connector
1 * CF card socket

BIOS

AMI 8MB DIP Flash ROM

Form Factor

3.5” SBC (148mm x 102mm)。

Barebone Specification

Product size

180 (W) *142 (D) * 48 (H) mm

Specs Devices

1 x 2.5”HDD Drive Bay (Only support SATA 2.5”HDD)

Colors

Black

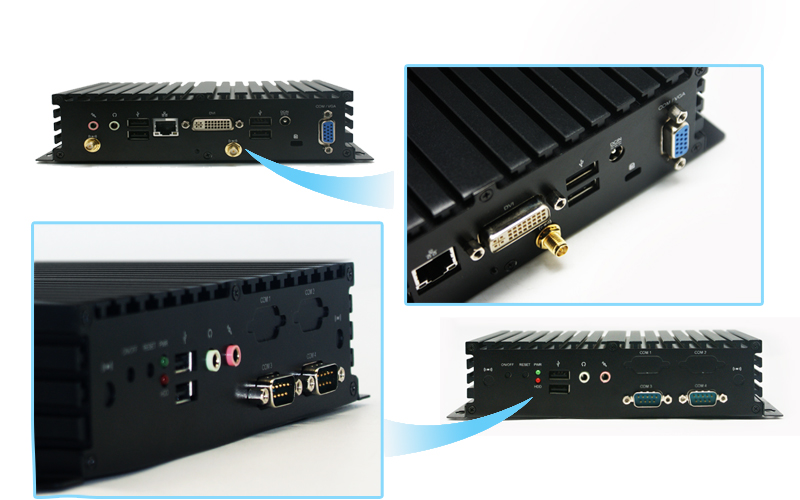

Front I/O Port

1 * Power button & 1 * Reset button
1 * Line-OUT & 1 * MIC jack
2 * USB 2.0 ports
2 * COM ports
2 * Antenna holes

Rear I/O Port

4 * USB 2.0 ports                 1 * 12V DC jack
1 * RJ-45 port(Gigabit LAN)        1 * Line-out & 1 * Line-in port & 1 * DVI-I port
2 * Antenna holes                 1 * VGA port Reserved

Power supply

+12V DC-IN Power

Accessory

60W AC-DC Adapter x 1       Power Cord x 1
CD x 1                      Manual x 1
DVI-I to CRT Converter x 1     WI-FI antenna * 1（JBC370F33W –270-B only）
Wall Mount Bracket x 2        LCD VESA Mount Bracket x 1 (Optional)

Application

Kiosk, Digital Signage, Gaming machine, Set Top Box, Thin Client, Car PC Application,  Factory Automation & Embedded Fanless application

Packing

Color Box Dimension：250(W) x 118 (D) x 295 (H) mm
Gross Weight：2.78KG            Net Weight：1.43KG
