Model No

JBC372F36-2600-B / JBC372F36W-2600-B

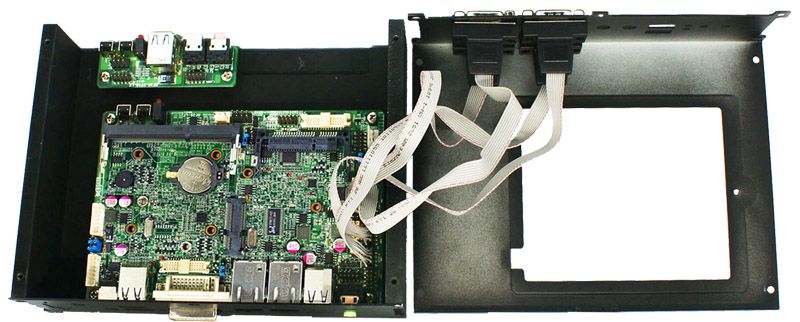

Motherboard Specification

CPU

INTEL® Cedar Trail-M Processor N2600 (1.6GHz)

Chipset

INTEL®NM10 Express chipset

Memory

1 * DDR3 800MHz Single CH SO-DIMM up to 4GB

Expansion Slots

1 * Mini PCI-E

LAN

2 * Realtek RTL8111EVL PCI-E Gigabit Ethernet LAN

Audio

Realtek ALC662 HD Audio CODEC with 4-Channel

Storage

 1* Serial ATA2 3Gb/s connector
1 * CFast card socket

BIOS

AMI 16MB SMT Flash ROM

Form Factor

3.5” SBC (148mm x 102mm)。

Barebone Specification

Product size

180 (W) *142 (D) * 48 (H) mm

Specs Devices

1 x 2.5”HDD Drive Bay (Only support SATA 2.5”HDD)

Colors

Black

Front I/O Port

1 * Power button & 1 * Reset button
1 * Line-OUT & 1 * MIC jack
2 * USB 2.0 ports
4 * COM ports
2 * Antenna holes

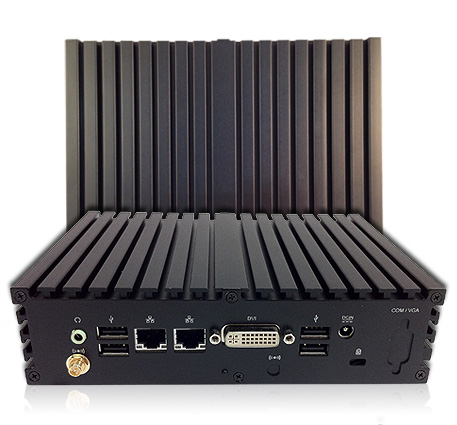

Rear I/O Port

4 * USB 2.0 ports                 1 * 12V DC jack
2 * RJ-45 port(Gigabit LAN)         1 * Line-out port & 1 * DVI-I port
2 * Antenna holes

Power supply

+12V DC-IN Power

Accessory

60W AC-DC Adapter x 1       Power Cord x 1
CD x 1                      Manual x 1
DVI-I to CRT Converter x 1     WI-FI antenna * 1（JBC372F36W –2600-B only）
Wall Mount Bracket x 2        LCD VESA Mount Bracket （optional）x 1

Application

Kiosk, Digital Signage, Gaming machine, Set Top Box, Thin Client, Car PC Application,  Factory Automation & Embedded Fanless application

Packing

Color Box Dimension：417(W) x 137(D) x 296(H)mm
Gross Weight：2.6KG            Net Weight：2.1KG
