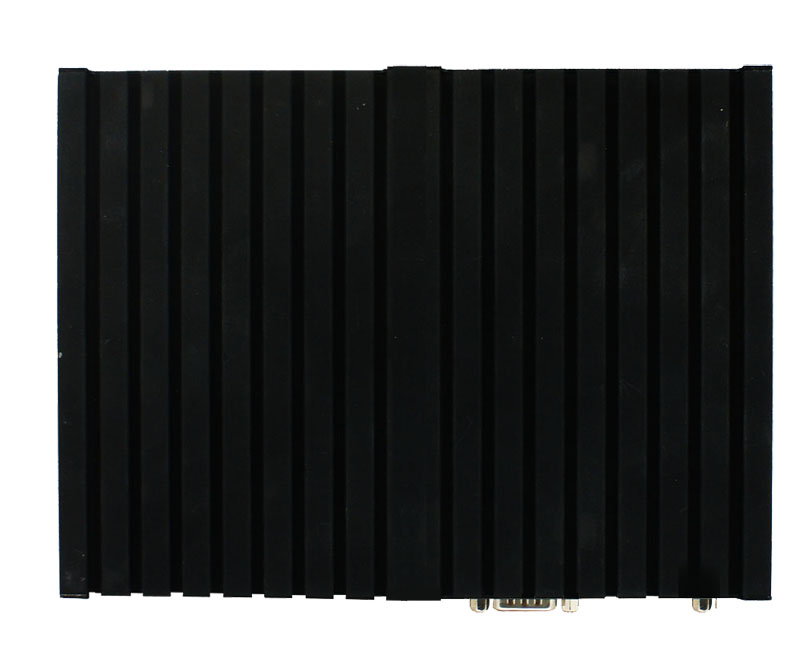

Model No

JBC373F38-525-B / JBC373F38W-525-B

Motherboard Specification

CPU

INTEL® Pine Trail-D Processor D525

Chipset

INTEL®ICH8M Express chipset

Memory

1 * DDR3 800/667MHz Single CH SO-DIMM up to 2GB

Expansion Slots

2 * Mini PCI-E

LAN

4 * Realtek RTL8111EVL PCI-E Gigabit Ethernet LAN

Storage

1* Serial ATA2 3Gb/s connector
1 * CF card socket (Support CF or CF SATA card)
1 * mSATA socket (Shared with one Mini PCI-E socket)

BIOS

AMI 16MB SMT Flash ROM

Form Factor

3.5” SBC (148mm x 102mm)。

Barebone Specification

Product size

180 (W) *142 (D) * 48 (H) mm

Specs Devices

1 x 2.5”HDD Drive Bay (Only support SATA 2.5”HDD)

Colors

Black

Front I/O Port

1 * Power button & 1 * Reset button
1 * Power LED & 1 * HDD LED
2 * USB 2.0 ports
4 * NIC LED’s
4 * LAN ports (optional)

Rear I/O Port

2 * USB 2.0 ports                 1 * 12V DC jack
4 * RJ-45 port(Gigabit LAN)        1 * Kensington hole
2 * Antenna holes                 1 * VGA & 1 * COM port

Power supply

+12V DC-IN Power

Accessory

60W AC-DC Adapter x 1       Power Cord x 1
CD x 1                      Manual x 1
COM cable x 1               WI-FI antenna * 1（JBC373F38W–525-B only）
Wall Mount Bracket x 2        LCD VESA Mount Bracket x 1 (Optional)

Application

Networking Appliance, Set Top Box, Thin Client

Packing

Color Box Dimension：250(W) x 118 (D) x 295 (H) mm
Gross Weight：2.78KG            Net Weight：1.43KG
