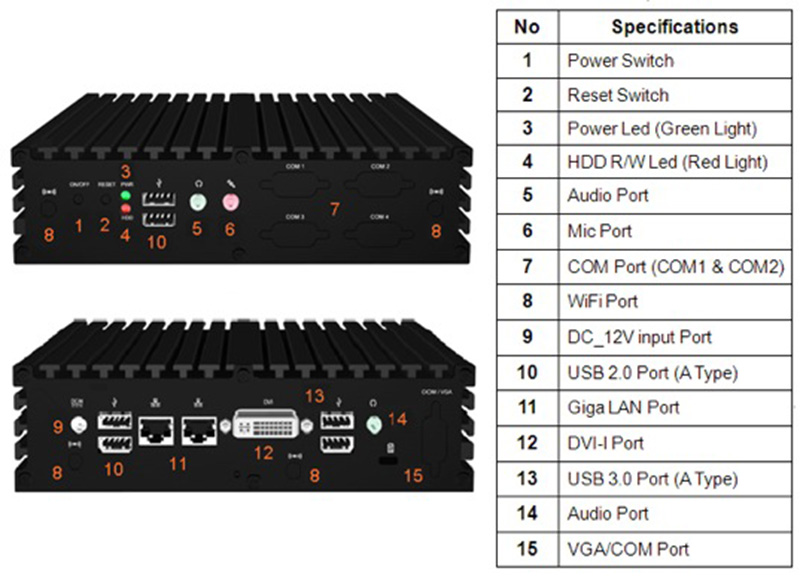

Fanless Computers Solutions JBC375F3A-2930-B
JBC375F3A-2930-B
  1. INTEL® Bay Trail-M N2930 SoC Processor
  2. 1 * SO-DIMM solt (Max 4GB)
  3. 2 * Mini PCIE slot
  4. 2 * RTL8111G PCI-E Gigabit LAN
  5. Realtek ALC662 HD Audio CODEC with 2-Channel
  6. Support 1 * 2.5” SATA Device (Max Height 9.5 mm)
  7. Support 1 * m-SATA SSD Device (Mini PCI-E)
  8. 1 * USB3.0 ports
  9. 2 * USB2.0 ports
  10. 1* LCD VESA Mount Bracket (Optional)


  • Dimension (W*H*D)
  • 185 * 48 * 142  mm
  • Construction
  • Aluminum housing
  • Colors
  • Black
  • MB model
  • JNF3A-2930 (3.5 “ SBC)
  • CPU
  • INTEL® Bay Trail-M N2930 SoC Processor (1.86GHz)
  • BIOS
  • AMI UEFI
  • Memory
  • 1 * SO-DIMM solt (Max 4GB)
  • Storage Space
  • 1 * 2.5” SATA Device (Max Height 9.5 mm)
  • 1 * m-SATA SSD Device (Mini PCI-E)
  • Display  Interface
  • 1 * DVI-I
  • 1 * LVD-24 bits  ( Internal pin header)
  • Network
  • 2 * RJ45 (Giga Lan)
  • WiFi (optional / JBC375F3AW-2930-B)
  • Audio
  • 2 * Line out
  • 1 * Mic in
  • Front I/O Port
  • 2 * USB 2.0
  • 2 * COM
  • Rear I/O Port
  • 3 * USB 2.0
  • 1 * USB 3.0
  • Expansion Interface
  • Mini PCI-E # 1 : Half-size
  • Mini PCI-E # 2 : Full-size
  • Power Source
  • DC-12V Jack input
  • Adapter : AC_90~240V / DC_12V_5A / 60W
  • Certification
  • EMC : CE , FCC
  • Safety : RoHS , ErP
  • Environment
  • Operating Temperature : 0 ~ 40℃
  • Storage Temperature : 0 ~ 70℃
  • Vibration During Operation : N/A
  • Shock During Operation : N/A
  • Mounting
  • Wall mounting Kits
  • ­­Packing
  • Net Weight：1.4KG
  • Gross Weight：2.7KG
  • Color Box Dimension：250(W) x 118 (D) x 295 (H) mm
© Copyright IBT Technologies Inc., 2014 - All Rights Reserved * Information are subject to change without notice, Engineering specs may differ slightly.
* Parts number may differ from ordering information.
