Fanless Computers Solutions JBC390F541XA-1900-B
 |
 DATASheet
- Fanless Intel Celeron Bay Trail J1900 SoC Processor
- Embedded Long-life Series
- Planned Lifecycle Through Q1'2019
- Intel Gigabit LAN Ports
- Supports GEN3 Daughter Board Module
- Optional: Add 4x COM Ports
- ECO-design for EuP/ErP
- Comply FCC/CE/RoHS
  |
| Model Name |
JBC390F541XA-1900-B |
JBC390F541WXA-1900-B |
| Part Number |
HBJC390F541XA19B |
HBJC390F541WXA19B |
| Motherboard Specification |
| CPU |
Intel® Celeron J1900, 2.0GHz Quad-Core SoC, 10W, Bay Trail |
| Memory |
1 * 204-pin DDR3L-1333 SO-DIMM up to 8GB (1.35V required) |
| Graphics |
Intel HD Graphics |
| LAN |
6 * Intel i211AT Gigabit LAN |
| Audio |
Realtek ALC662 HD Audio |
| Storage |
1 * 2.5" SATA2 3Gb/s drive bay for HDD or SSD
1 * mSATA/mini-PCI Express shared slot (Full-size) |
| Wireless / Mini-PCIE Slot |
1 * Mini-PCI Express slot (Full-size) |
Wireless 802.11 b/g/n |
| USB |
Embedded 1 * USB 3.0 and 3 * USB 2.0 |
| Chassis Specification |
| Product size |
185 (W) * 165 (D) * 48 (H) mm |
| Color |
Black |
| Storage Bay |
1 * 2.5" Drive Bay (Only support SATA 2.5" HDD or SSD) |

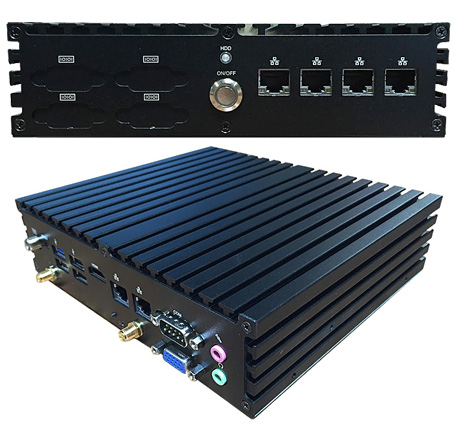

| Front I/O Port |
1 * Power Button
1 * HDD LED
4 * RJ-45 LAN ports |

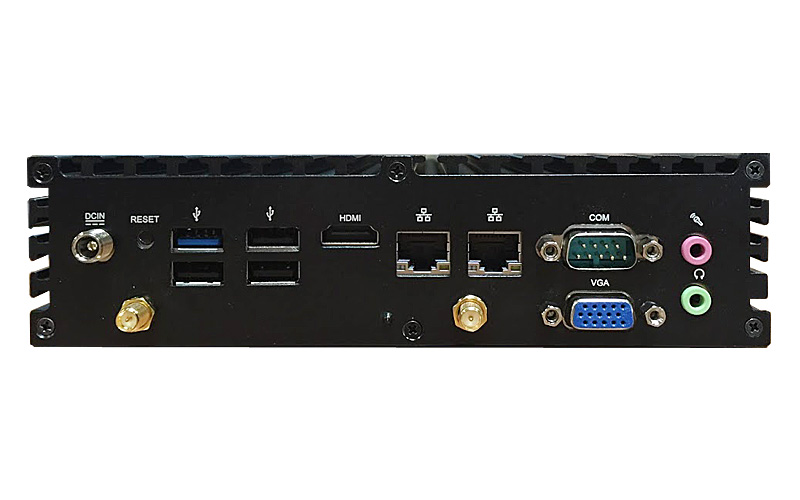

| Rear I/O Port |
1 * +12V DC-in jack
1 * Reset Switch
1 * USB 3.0 ports
3 * USB 2.0 ports
1 * HDMI
2 * RJ-45 LAN ports
1 * Serial port (RS232/422/485)
1 * VGA port
1 * Line Out jack
1 * MIC In jack
2 * SMA Connectors for WiFi Antenna |
| Environment |
Operating Temperature : 0 ~ 40°C
Storage Temperature : -20 ~ 85°C |
| Standard Accessory |
√ 60W AC-DC Adapter x1
√ Power Cord x1
√ Wall Mount Kit
√ DIN RAIL x2
√ CD Disk x1
√ Manual x1
√ WIFI antenna (with HBJC390F541W model) |
| Functional |
Networking Appliance, Firewall/Router, Industrial Contol, Digital Security, Embedded System |
| Certificate |
CE,FCC,ErP For Barebone
CE,FCC,TUV,UL,CCC,CB,ErP For Power Adapter |
|
|
|
|
| © Copyright IBT Technologies Inc., 2014 - All Rights Reserved |
* Information are subject to change without notice, Engineering specs may differ slightly.
* Parts number may differ from ordering information. |
|
