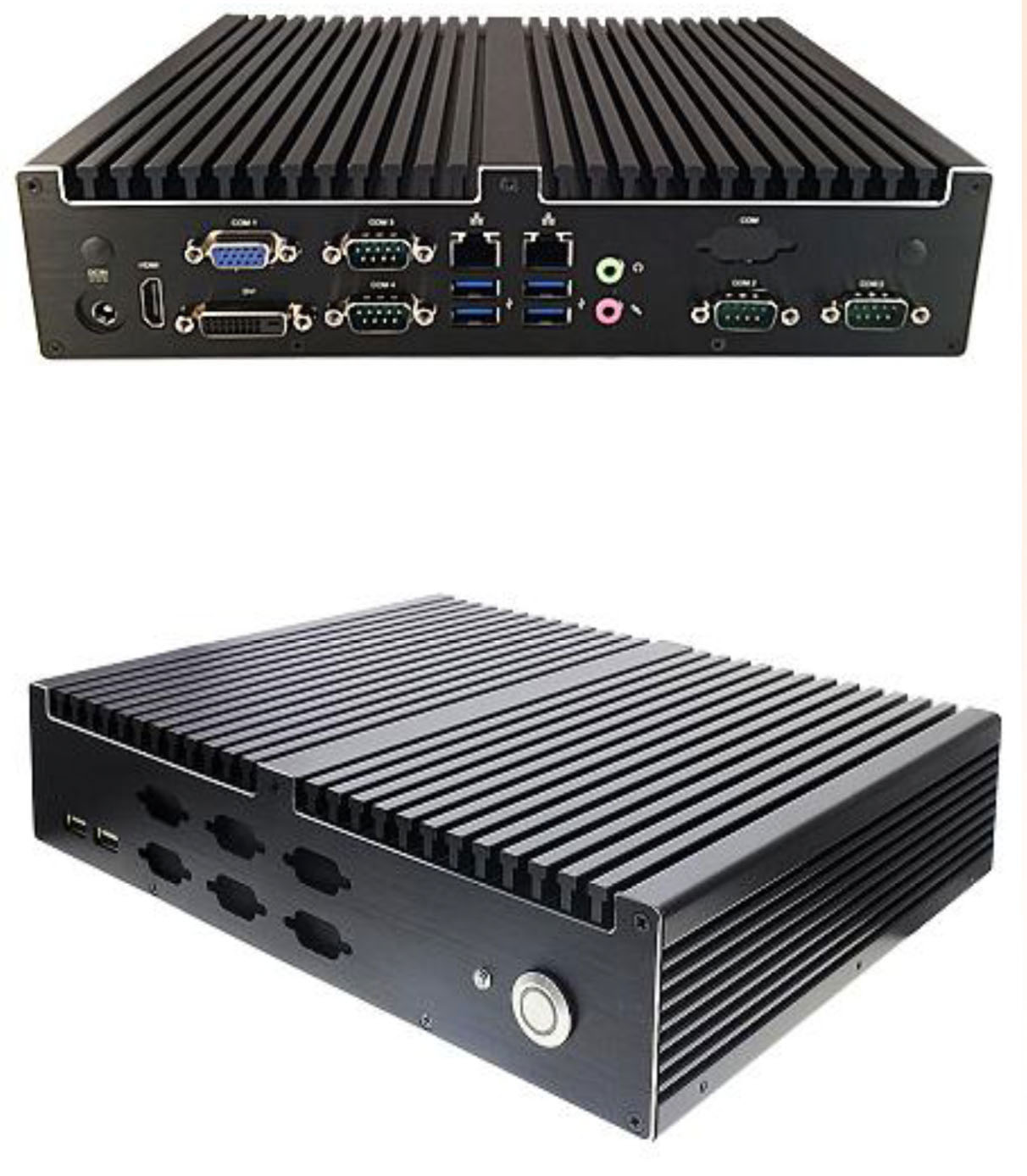

Fanless Computers Solutions - JBC501F9QU-Q87-B
 |
- 4th Generation Intel® Core i7 / i5 / i3 / Pentium Processor < 45W
- Embedded Long-life Series, Planned Lifecycle Through Q4'2018
- Nuvoton TPM IC Onboard
- Support up to 3 Displays, HDMI, DVI-D, VGA
- Supports iAMT 9.0 Function
- ECO-design for EuP/ErP
 Specs Sheet
|
| Model No |
JBC501F9QU-Q87-B |
JBC501F9QUW-Q87-B |
| Part No |
HBJC501F9QU-Q87-B |
HBJC501F9QUW-Q87-B |
| Motherboard Specification |
| CPU |
4th Generation Intel® Core i7 / i5 / i3 / Pentium Processor < 45W
Socket LGA 1150 (Formerly Haswell) |
| Chipset |
Intel Q87 Chipset |
| Memory |
2 x 204-pin SODIMM DDR3-1600 Dual Channel (up to 16 GB) |
| Graphics |
Requires Intel Core processor with Intel HD Graphics |
| LAN |
1 x Intel i217LM PHY Gigabit LAN (iAMT 9.0)
1 x Intel i211AT PCI-E Gigabit LAN |
| Audio |
Realtek ALC662 HD Audio codec |
| Storage |
4 x SATA3 6Gb/s Ports with RAID 0, 1, 5, 10 , JBOD
1 x Shared mSATA/mini-PCI Express Combo slot (Full-size) |
| Wireless / Mini-PCIE Slot |
1 * Mini-PCI Express Slot (Half-size) |
Wireless 802.11 b/g/n |
| USB |
Embedded 4 * USB 3.0 & 2 * USB 2.0 |
| MB Form Factor |
Mini-ITX (170mm x 170mm) |
| Chassis Specification |
| Product size |
260 (W) * 208 (D) * 58.5 (H) mm |
| Color |
Black |
| Storage |
1 * 2.5" SATA Drive Bay |
| Front I/O Port |
1 * Power Button
1 * HDD LED
2 * USB 2.0 ports
6 * DB9 punchouts |
| Rear I/O Port |
1 * +9 ~ +24V DC-in jack (1-pin 2.5mm ID, 5.5mm OD)
1 * HDMI (up to 1920 x 1080)
1 * DVI-D (up to 1920 x 1080)
1 * VGA (up to 1920 x 1080)
1 * RS232/422/485 jumperless COM port
3 * RS232 COM port
4 * USB 3.0 ports
2 * RJ-45 ports
1 * Line-out jack
1 * MIC-in jack
2 * SMA Hole for WiFi Antenna |
| Other Internal Headers |
These connectors may not be fully usable with chassis closed, but the information is provided for customer alternative uses.
1 * PCI-E 2.0 x4 Slot
1 * Chassis Intrusion header
1 * AT/ATX mode select jumper
1 * 8-bit GPIO Header |
| Environment |
Operating Temperature : 0 ~ 40°C
Storage Temperature : -20 ~ 85°C |
| Standard Accessory |
√ 19V 120W AC-DC Adapter x1
√ Power Cord x1
√ Wall Mount Kit
√ DVI-to-VGA adapter x1
√ DIN RAIL x2
√ DVD Disk x1
√ Manual x1
√ WIFI antenna (with HBJC501F9QUW-Q87-B model) |
| Certificate |
CE,FCC,ErP For Barebone
CE,FCC,TUV,UL,CCC,CB,ErP For Power Adapter |
|
|
|
|
| © Copyright IBT Technologies Inc., 2014 - All Rights Reserved |
* Information are subject to change without notice, Engineering specs may differ slightly.
* Parts number may differ from ordering information. |
|
